B-Pillar Upper Trim Panel, Removing And Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Omega Clip Tool: T40280

The following information describes the removing and installing on the left side of the vehicle as an example.

-- Free up the B-pillar upper trim panel -1- in the area of the inner door seal.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

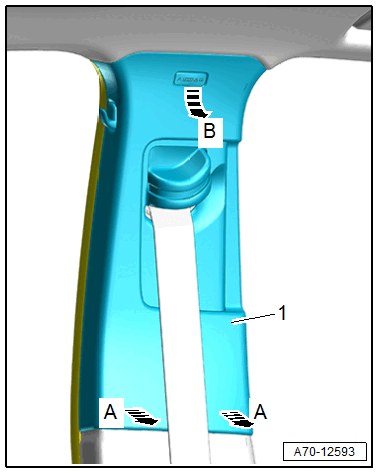

-- Unclip the side of the B-pillar upper trim panel -1- in the -direction of arrow A- using a commercially available plastic wedge.

-- Remove the B-pillar upper trim panel -1- in the -direction of arrow B-.

-- Remove the front belt end fitting. Refer to Front Belt End Fitting, Removing and Installing .

-- Guide out the seat belt webbing with front belt end fitting from the B-pillar upper trim panel.

Installing

Install in the reverse order of removal while noting the following:

-- Remove any clips remaining in the body using the Omega Clip Tool: T40280 and insert them into the B-pillar upper trim panel for installation.

-- Guide the front seat belt end fitting in through the B-pillar upper trim panel -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the B-pillar upper trim panel -1- at a slight diagonal angle and insert it in the -direction of arrow A-.

-- Tilt the B-pillar upper trim panel -1- in the -direction of arrow B- to secure it.

-- Make sure that the belt height adjuster works correctly.

-- Make sure that the upper B-pillar trim panel is in the inner door seal molding after installing.
