A-Pillar Lower Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
-- Loosen the front sill panel in the area of the A-pillar trim panel. Refer to FRONT SILL PANEL, REMOVING AND INSTALLING .
-- Remove the A-pillar gap cover. Refer to A-Pillar Gap Cover, Removing and Installing .
Driver side
-- Remove the latch release lever. Refer to HOOD LATCH OPERATING LEVER, REMOVING AND INSTALLING .
Continuation for all vehicles

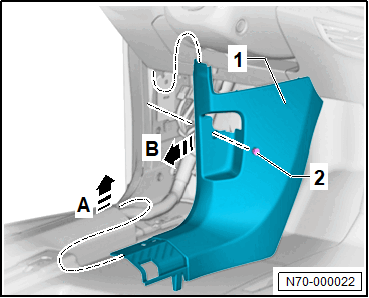

-- Remove the clip -2-.
-- Free up the A-pillar lower trim panel -1- in the area of the inner door seal.
-- Unclip the A-pillar lower trim panel -1- in the -direction of arrow A- using a commercially available plastic wedge.
-- Remove the A-pillar lower trim panel -1- in the -direction of arrow B-.
