Overview - Rear Door Trim Panel

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

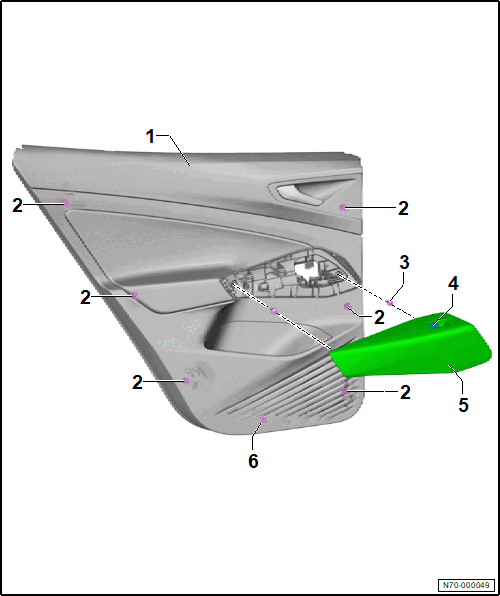

The overview shows the left side of the vehicle as an example

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Door Trim Panel
- Refer to Rear Door Trim Panel, Removing and Installing .
Clip
- Quantity: 6
Bolt
- Quantity: 2
- 4.5 Nm
Rear Window Regulator Button
- LHD: with Driver Side Rear Power Window Button - E711-
- RHD: with Passenger Side Rear Power Window Button - E713-
- Refer to CONTROL HEAD IN PASSENGER AND DRIVER SIDE REAR DOOR EX60/EX61, REMOVING AND INSTALLING .
Button Trim
- Refer to Button Trim, Removing and Installing .
Rotator Clip
