Button Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

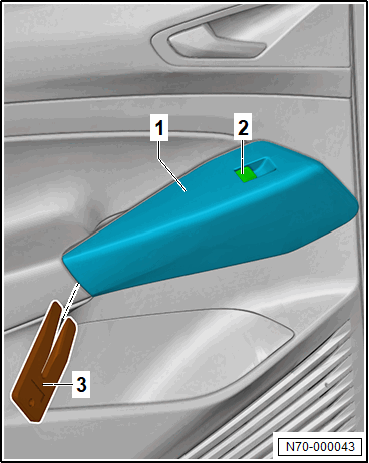

-- Unclip the button trim -1- with button -2- using the Wedge: T10383  -3-.

GWWN70-000043Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors.
