Luggage Compartment Floor Bracket, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
The following information describes the removing and installing on the left side of the vehicle as an example.

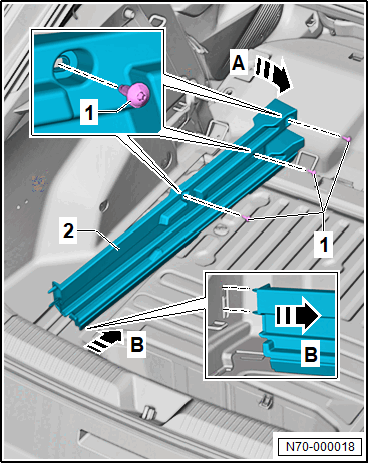

-- Remove the luggage compartment floor.
-- Remove the bolts -1-.
-- Tilt the luggage compartment floor -2- in the -direction of arrow A-.
-- Pull the luggage compartment floor bracket -2- out in the -direction of arrow B- and remove it.
