Lock Carrier Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with luggage compartment floor
-- Remove the luggage compartment floor.
Continuation for all vehicles
-- Remove the luggage compartment carpet.

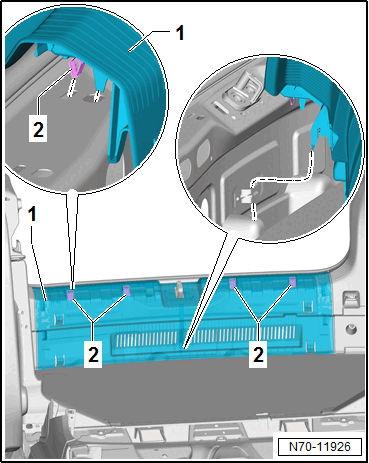

-- Free up the lock carrier trim panel -1- near the rear lid seal.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Remove the lock carrier trim panel -1- upward.
