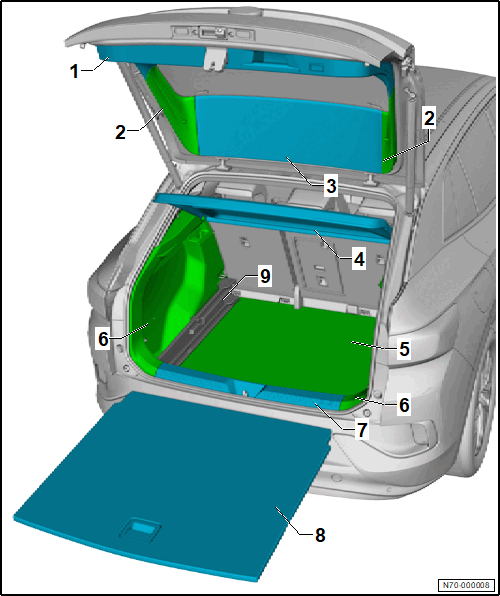

Component Location Overview - Luggage Compartment Trim Panels
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Lid Lower Trim Panel
- Refer to Overview - Rear Lid Lower Trim Panel .
- Refer to Rear Lid Lower Trim Panel, Removing and Installing .
- Side Trim Panel for Rear Lid
- Refer to Overview - Rear Lid Upper Trim Panel .
- Refer to Rear Lid Side Trim Panel, Removing and Installing .
- Rear Lid Upper Trim Panel
- Refer to Overview - Rear Lid Upper Trim Panel .
- Refer to Rear Lid Upper Trim Panel, Removing and Installing .
- Rear Shelf
- Luggage Compartment Carpet
- Refer to Overview - Luggage Compartment Floor .
- Luggage Compartment Side Trim Panel
- Lock Carrier Trim Panel
- Luggage Compartment Floor
- Depending on equipment/version
- Refer to Overview - Luggage Compartment Floor .
- Luggage Compartment Floor Bracket
- Depending on equipment/version
- Refer to Overview - Luggage Compartment Floor .
- Refer to Luggage Compartment Floor Bracket, Removing and Installing .
