Tunnel Support Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center console. Refer to Center Console, Removing and Installing .

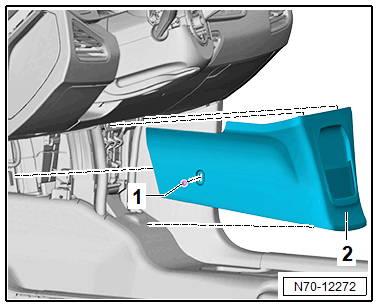

-- Remove the bolt -1- on both sides of the tunnel support cover -2-.

GWWN70-12272Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the tunnel support cover -2-.
