Side Defroster Vent, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The following information describes the removing and installing on the left side of the vehicle as an example.

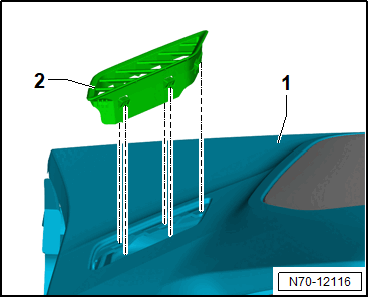

-- Pry the side defroster vent -2- upward out of the instrument panel -1- using a commercially available plastic wedge.

GWWN70-12116Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
