Instrument Panel Side Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The following information describes the removing and installing on the left side of the vehicle as an example.

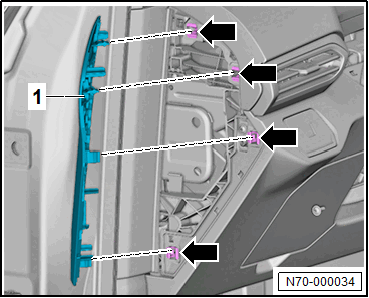

-- Unclip the instrument panel side cover -1- in the area of the catches -arrows- using a commercially available plastic wedge.

GWWN70-000034Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front passenger side

-- Disconnect the connector on the Front Passenger Airbag Deactivation Key Switch -E224-. Refer to the appropriate service information .

Continuation for all vehicles
