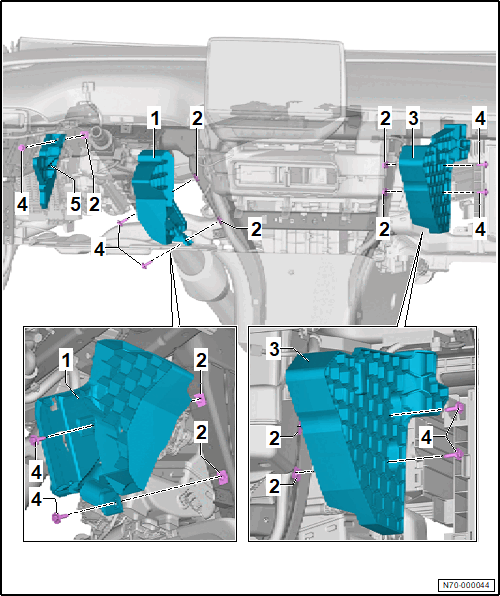

Overview - Impact Absorber And Glove Compartment Bracket

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Driver Side Impact Absorber
- Refer to DRIVER SIDE RIGHT IMPACT ABSORBER, REMOVING AND INSTALLING
Spring Nut
- Quantity: 5
Front Passenger Side Impact Absorber
- Refer to FRONT PASSENGER SIDE IMPACT ABSORBER, REMOVING AND INSTALLING
Bolt
- Quantity: 5
- 3 Nm
Left Driver Side Impact Absorber
- Refer to DRIVER SIDE LEFT IMPACT ABSORBER, REMOVING AND INSTALLING
