Overview - Front Door Trim Panel

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

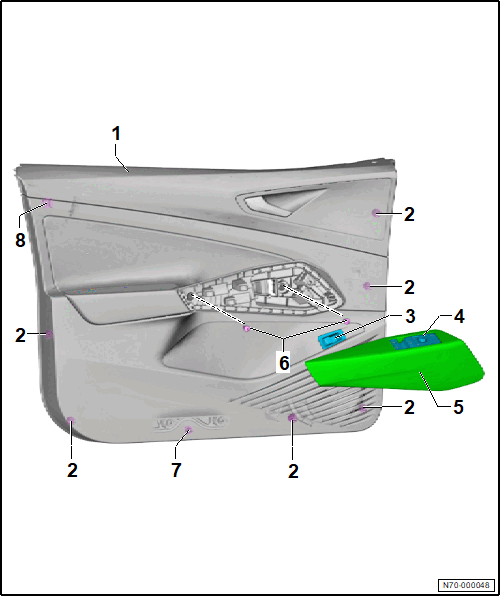

The overview shows the left side of a left-hand drive vehicle as an example

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Door Trim Panel
- Refer to Front Door Trim Panel, Removing and Installing .
Clip
- Quantity: 6
Rear Lid Remote Release Button -E233-
- Refer to Rear Lid Remote Release Button -E233-, REMOVING AND INSTALLING .
Power Window Control Head in Driver Door -EX36-
- Refer to Power Window Control Head in Driver Door -EX36-, REMOVING AND INSTALLING
Button Trim
- Replace after removing
- Refer to Button Trim, Removing and Installing .
Bolt
- Quantity: 2
- 4.5 Nm
Rotator Clip
Crash Clip
