Upper Steering Column Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the steering wheel. Refer to STEERING WHEEL, REMOVING AND INSTALLING .

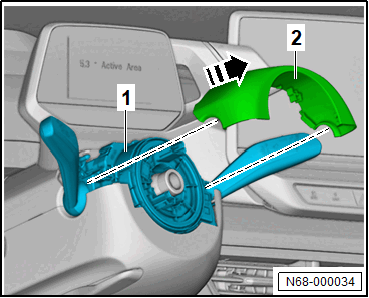

-- Pry off the steering column upper trim panel -2- in -direction of the arrow- from the Steering Column Electronics Control Module -J527- -1- using a commercially available plastic wedge.

GWWN68-000034Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
