Overview - Steering Column Trim Panel

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

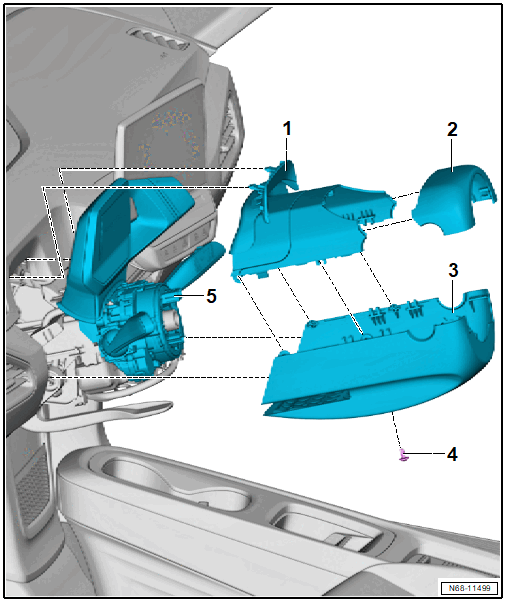

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Instrument Cluster Gap Cover
- Refer to Instrument Cluster Gap Cover, Removing and Installing .
Upper Steering Column Trim Panel
- Refer to Upper Steering Column Trim Panel, Removing and Installing .
Lower Steering Column Trim Panel
- Refer to Lower Steering Column Trim Panel, Removing and Installing .
Bolt
- 2.5 Nm
Steering Column Electronics Control Module -J527-
- Refer to STEERING COLUMN ELECTRONICS CONTROL MODULE -J527-, REMOVING AND INSTALLING .
