Overview - Driver Side Instrument Panel Cover, LHD Vehicles

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

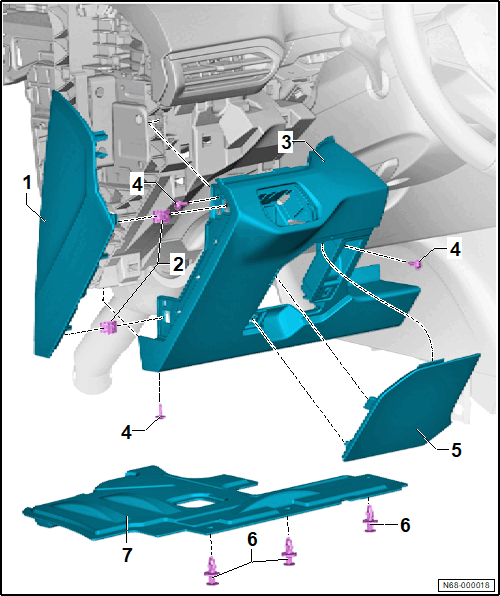

GWWN68-000018Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Instrument Panel Side Cover
  2. Clip
    • Quantity: 2
  3. Driver Side Instrument Panel Cover
  4. Bolt
    • Quantity: 3
    • 1.5 Nm
  5. Fuse Box Cover
  6. Expanding Rivet
    • Quantity: 3
  7. Driver Side Footwell Cover
