Lower Steering Column Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the steering column upper trim panel. Refer to Upper Steering Column Trim Panel, Removing and Installing .

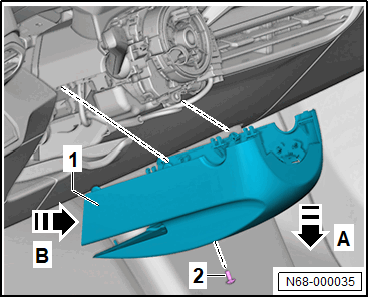

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tilt the steering column lower trim panel -1- in the -direction of arrow A- and unclip it.

-- Disconnect the connector.

-- Remove the steering column lower trim panel -1- in the -direction of arrow B-.
