Front Center Armrest, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

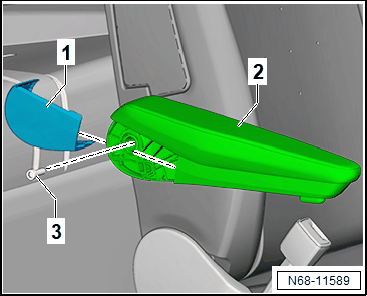

-- Unclip the trim -1- using a commercially available plastic wedge.

GWWN68-11589Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -3-.

-- Remove the front center armrest -2-.
