Roof Grab Handle, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

Conditions

A spacer must always be installed.

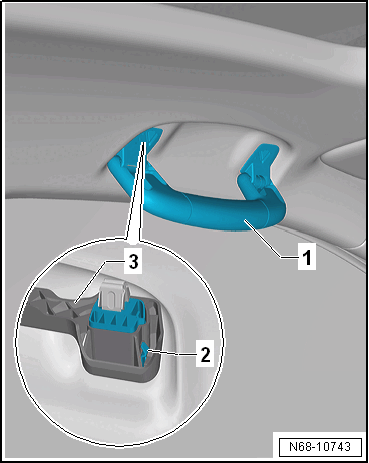

-- Engage the roof grab handle -1- in the spacer -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Conditions

The hooks -2- must engage.

-- Position the roof grab handle -1- and press on it until it audibly engages in the body.
