Rear Center Console Vent, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Open the rear center console vent completely.

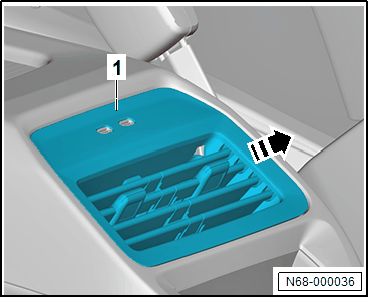

-- Carefully guide the Hook :T10538 into the rear center console vent -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the rear center console vent -1- out forcefully in the -direction of the arrow-.

-- Disconnect the connector.
