Rear Center Console Storage Compartment, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center console cover. Refer to Center Console Cover, Removing and Installing .

-- Remove the Front Center Console Ambient Lighting Bulb 1 -L193-. Refer to the appropriate service information .

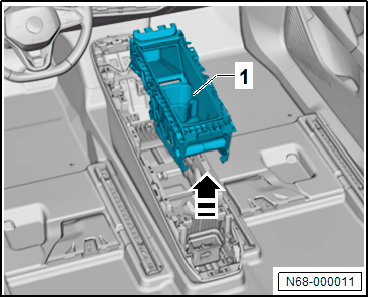

-- Remove the rear center console storage compartment -1- in the -direction of the arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors.
