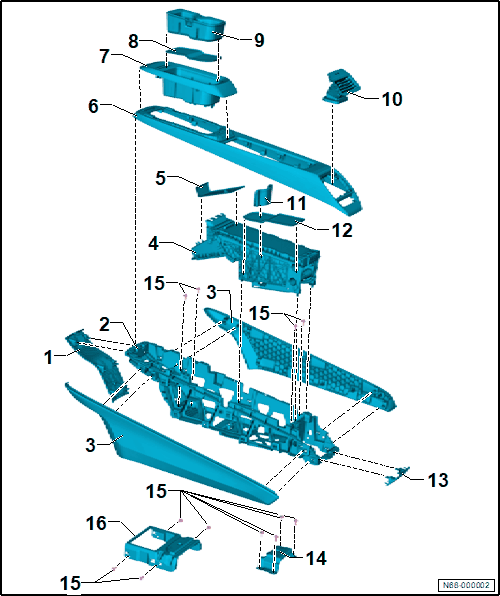

Overview - Center Console

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Center Console Front Trim
- Refer to CENTER CONSOLE FRONT TRIM, REMOVING AND INSTALLING
Center Console
- Refer to Center Console, Removing and Installing .
Center Console Side Trim Panel
- Refer to CENTER CONSOLE SIDE TRIM PANEL, REMOVING AND INSTALLING
Rear Center Console Storage Compartment
- Refer to Rear Center Console Storage Compartment, Removing and Installing .
Storage Compartment Mat
Center Console Cover
- Refer to Center Console Cover, Removing and Installing .
Center Console Insert
- Refer to Center Console Insert, Removing and Installing .
Storage Compartment Mat
Cupholder
- Refer to Cupholder, Removing and Installing .
Rear Center Console Vent
- Refer to Rear Center Console Vent, Removing and Installing .
Storage Compartment Insert
Storage Compartment Mat
Center Console Rear Trim
- Refer to Center Console Rear Trim, Removing and Installing .
Rear Center Console Bracket
- Refer to Center Console Bracket, Removing and Installing .
Bolt
- Quantity: 12
- 6 Nm
Front Center Console Bracket
- Refer to Center Console Bracket, Removing and Installing .
