Center Console Rear Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center console cover. Refer to Center Console Cover, Removing and Installing  .

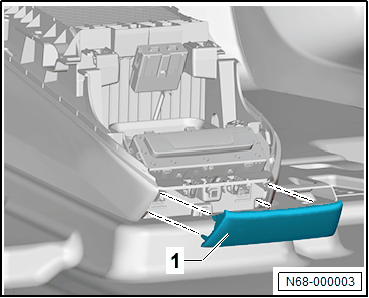

-- Unclip the rear center console trim -1- using a commercially available plastic wedge.

GWWN68-000003Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
