Center Console Insert, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the cupholder. Refer to Cupholder, Removing and Installing  .

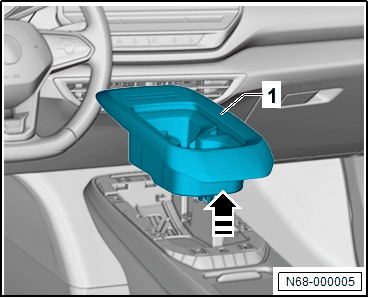

-- Unclip the center console insert -1- in the -direction of the arrow- using a commercially available plastic wedge.

GWWN68-000005Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector.
