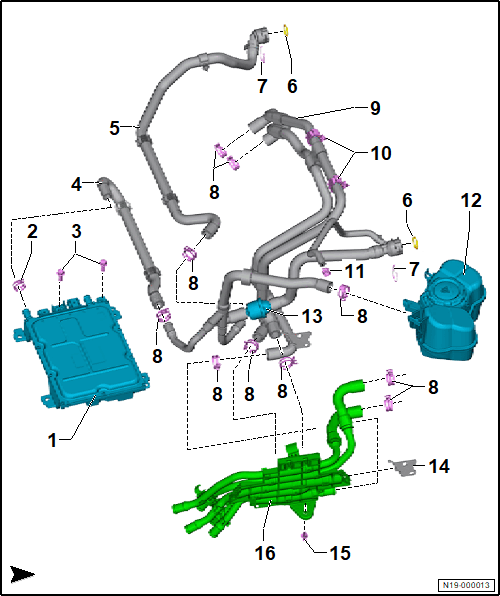

Overview - Cooling System, Right Front
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Voltage Converter -A19-
- Hose Clamp
- Bolt
- Tightening specification. Refer to Overview - Voltage Converter .
- Coolant Hose
- Coolant Hose
- O-Ring
- Clip
- Hose Clamp
- Coolant Hose
- Clip
- Quantity: 2
- Hose Clamp
- Coolant Expansion Tank
- With the Engine Coolant Level Sensor -G32-
- Refer to Coolant Expansion Tank, Removing and Installing .
- Thermostat
- Starts to open 15 °C (59 °F)
- Coolant Collection Pipe Bracket
- Expanding Rivet
- Coolant Collection Pipe
- The coolant hose and coolant pipe are marked using numbers
- Pay attention to the allocation
