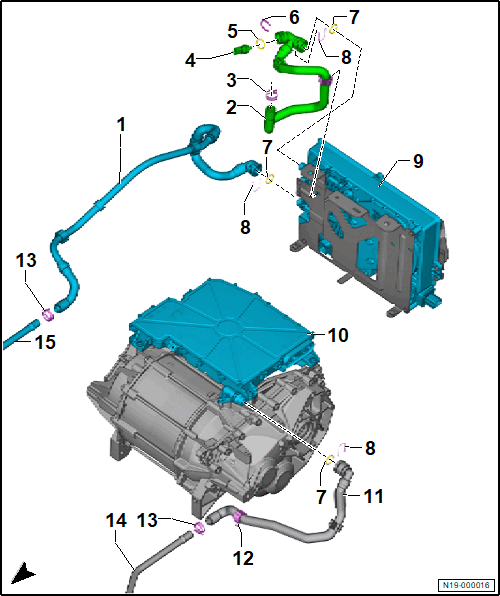

Overview - Cooling System, Rear
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Right Rear Coolant Pipe
- Coolant Hose
- Hose Clamp
- Temperature Sensor -G18-
- O-Ring
- Replace after removing
- Clip
- O-Ring
- Clip
- High-Voltage Battery Charger 1 -AX4-
- With High-Voltage Battery Charger Control Module -J1050-
- Refer to High-Voltage Battery Charger 1 AX4, Removing and Installing .
- Electric Drive Power and Control Electronics -JX1-
- With Three-Phase Current Drive -VX54-
- Refer to ELECTRIC DRIVE OUTPUT AND CONTROL ELECTRONICS, REMOVING AND INSTALLING, RWD .
- Coolant Hose
- Clip
- Hose Clamp
- Coolant Pipe
- Return
- Coolant Pipe
- Supply
