Overview - Coolant Valves

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

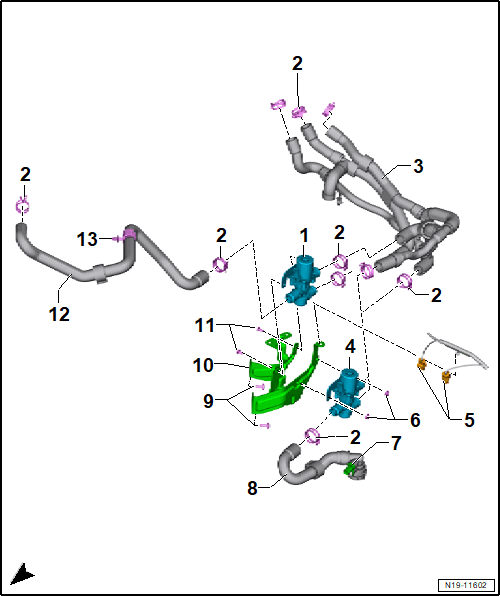

Fig 1: Exploded View Of Coolant Valves

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Mixing Valve 2 for High-Voltage Battery Warming -V696-
- Dependent on vehicle equipment/version
- Refer to MIXING VALVE 2 FOR HIGH-VOLTAGE BATTERY WARMING V696, REMOVING AND INSTALLING .
Clamp
Coolant Hose
Mixing Valve for High-Voltage Battery Warming -V683-
- Refer to MIXING VALVE FOR HIGH-VOLTAGE BATTERY WARMING V683, REMOVING AND INSTALLING .
Connector
Nut
- Quantity: 2
- 8 Nm
High-Voltage Battery Coolant Temperature Sensor 1 -G898-
- Refer to HIGH-VOLTAGE BATTERY COOLANT TEMPERATURE SENSOR 1 G898, REMOVING AND INSTALLING .
Coolant Hose
Bolt
- Quantity: 2
- 8 Nm
Bracket
Bolt
- Quantity: 2
- 8 Nm
Coolant Hose
Clip
