Side Sill Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Loosen the rear wheel housing liner in the area of the side sill trim panel. Refer to Rear Wheel Housing Liner, Removing and Installing  .

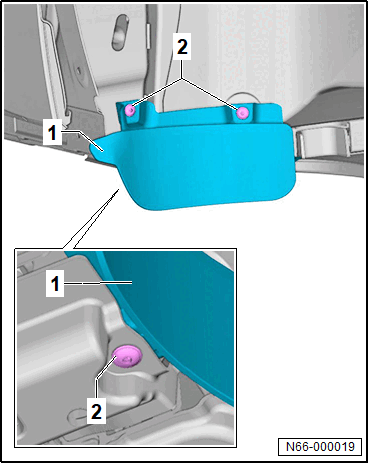

-- Remove the bolts -2-.

GWWN66-000019Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the side sill trim panel -1-.
