Rear Wheel Housing Liner, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear wheel. Refer to WHEEL, REMOVING .

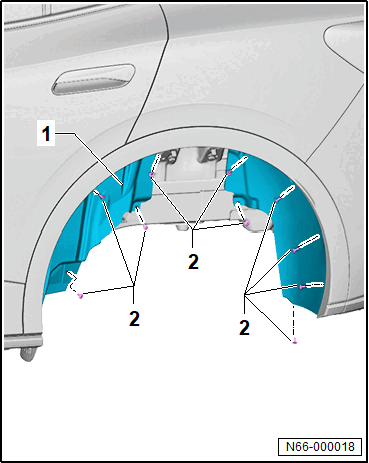

-- Remove the bolts -2-.

GWWN66-000018Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear wheel housing liner -1-.
