Overview - Rear Wheel Housing Liner

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

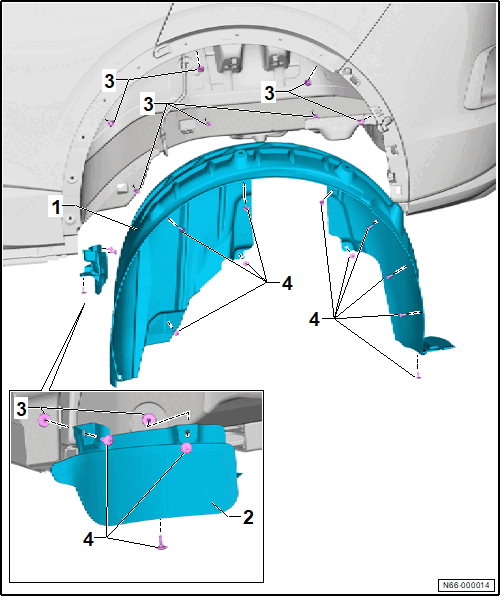

Fig 1: Exploded View Of Rear Wheel Housing Liner
GWWN66-000014Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rear Wheel Housing Liner
  2. Side Sill Trim Panel
  3. Expanding Nut
    • Quantity depending on the model
    • Quantity: 6, 8 or 9
  4. Bolt
    • Quantity depending on the model
    • Quantity: 9, 12 or 13
    • 2 Nm
