Overview - Front Wheel Housing Liner

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

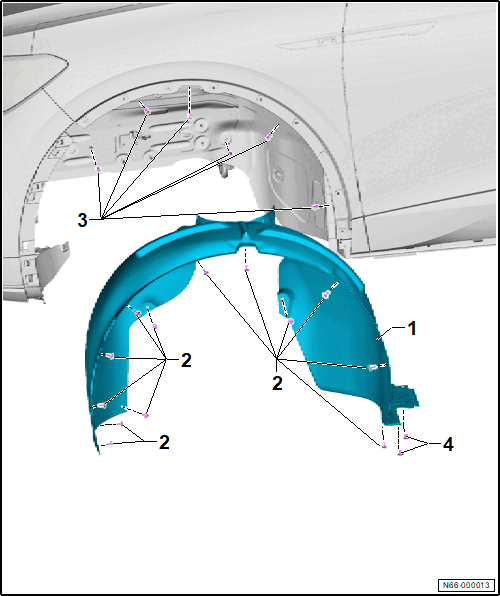

Fig 1: Exploded View Of Front Wheel Housing Liner

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Wheel Housing Liner
- Refer to Front Wheel Housing Liner, Removing and Installing .
Bolt
- Quantity depending on the model
- Quantity: 13 or 15
- 2 Nm
Expanding Nut
- Quantity depending on the model
- Quantity: 6 or 7
Expanding Rivet or Clip
- Mounting element depending on the model
- Quantity: 2
