Front Wheel Housing Liner, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

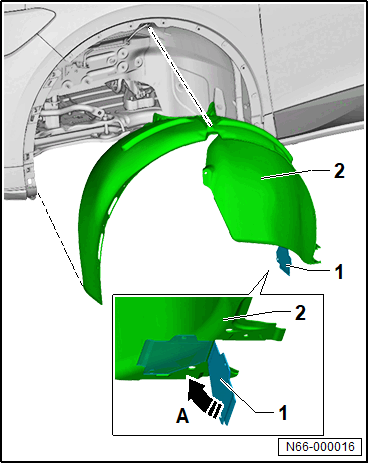

-- Clip the door -1- in the -direction of the arrow A-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Align the front wheel housing liner -2-.

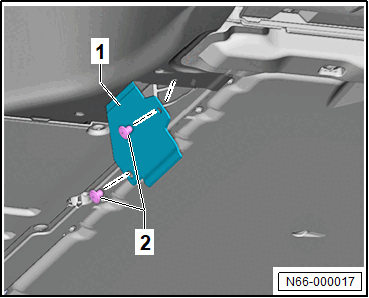

-- Secure the door -1- using the expanding rivets -2-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
