Underbody Towing Eye, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear underbody trim panel. Refer to Rear Underbody Trim Panel, Removing and Installing .

Underbody towing eye with 4 x M8 bolts

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the underbody towing eye -1- in the -direction of the arrow-.

-- Remove the underbody towing eye -1-.

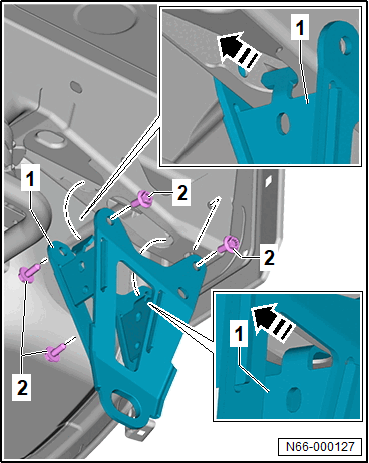

Underbody towing eye with 2 x M10 bolts

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the underbody towing eye -1- in the -direction of the arrow-.

-- Remove the underbody towing eye -1-.

Continuation for all vehicles
