Side Underbody Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

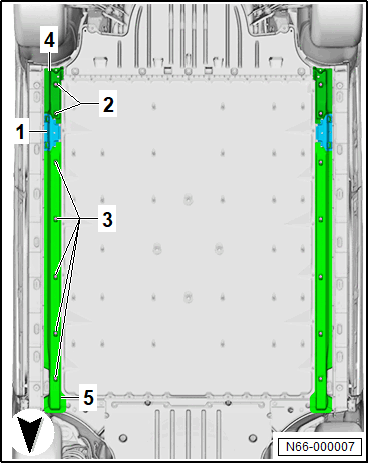

Removing the underbody side trim panel

-- Unclip the cover -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -3-.

-- Remove the expanding nuts -3-.

-- Remove the side underbody trim panel -5-.

Rear Sill Panel Reinforcement/Impact Guard Support, removing

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear sill panel reinforcement -4-.
