Overview - Underbody Trim Panels

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

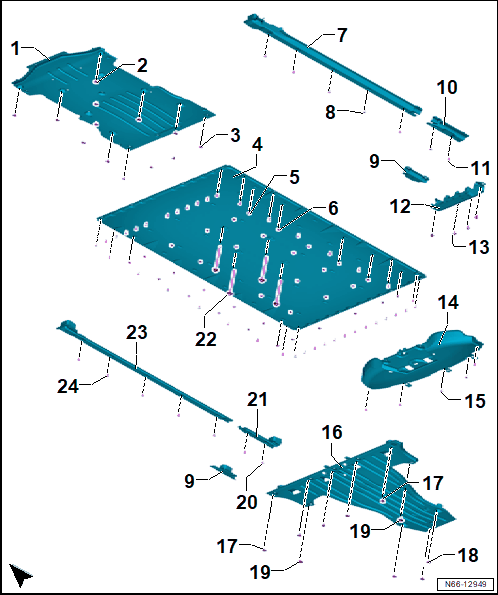

Fig 1: Exploded View Of Underbody Trim Panels, 82 KWH

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Underbody Panel
- Refer to Front Underbody Trim Panel, Removing and Installing .
Bolt
- Quantity: 9
- 2 Nm
Clip
- Quantity: 4
High-Voltage Battery Impact Guard
- Refer to HIGH-VOLTAGE BATTERY IMPACT GUARD, REMOVING AND INSTALLING, 55, 62 KWH .
Nut
- Quantity: 34
- Replace after removing
- 8 Nm +30°
Bolt
- Quantity: 39
- Replace after removing
- 8 Nm
Side Underbody Trim Panel/Side Impact Guard
- Depending on the equipment/version
- Refer to Side Underbody Trim Panel, Removing and Installing .
Bolt
- Quantity: 5
- 2 Nm
Cover
- Left and right
- Refer to Side Underbody Trim Panel, Removing and Installing .
Rear Sill Panel Reinforcement/Impact Guard Support
- Depending on the equipment/version
- Refer to Side Underbody Trim Panel, Removing and Installing .
Bolt
- Quantity: 2
- 2 Nm
Impact Guard
- Design depending on the model
- Refer to Impact Guard, Removing and Installing .
Bolt
- Quantity depending on the model
- Quantity: 3 or 4
- 20 Nm
Rear Underbody Trim Panel
- Design depending on the model
- Refer to Rear Underbody Trim Panel, Removing and Installing .
Bolt
- Quantity: 5
- 2 Nm
Rear Center Underbody Trim Panel
- Refer to Rear Center Underbody Trim Panel, Removing and Installing .
Clip
- Quantity: 5
Clip
- Quantity: 3
Bolt
- Quantity: 2
- 8 Nm
Bolt
- Quantity: 2
- 2 Nm
Rear Sill Panel Reinforcement/Impact Guard Support
- Depending on the equipment/version
- Refer to Side Underbody Trim Panel, Removing and Installing .
Bolt
- Quantity: 4
- Refer to OVERVIEW - REMOVED HIGH-VOLTAGE BATTERY, 48, 55, 62 KWH .
Side Underbody Trim Panel/Side Impact Guard
- Depending on the equipment/version
- Refer to Side Underbody Trim Panel, Removing and Installing .
Bolt
- Quantity: 5
- 2 Nm
