Overview - Underbody Trim Panels

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

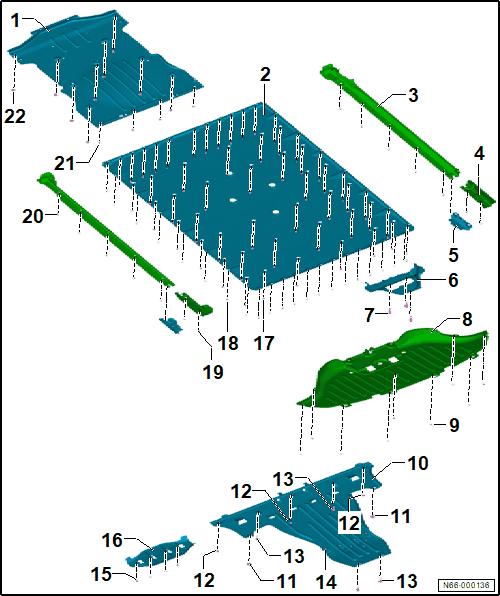

Fig 1: Exploded View Of Underbody Trim Panels, 82 KWH GTX

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Underbody Panel
- Refer to Front Underbody Trim Panel, Removing and Installing .
High-Voltage Battery Impact Guard
- Refer to High-Voltage Battery Impact Guard, Removing and Installing .
Side Underbody Trim Panel/Side Impact Guard
- Depending on the equipment/version
- Refer to Side Underbody Trim Panel, Removing and Installing .
Rear Sill Panel Reinforcement/Impact Guard Support
- Depending on the equipment/version
- Refer to Side Underbody Trim Panel, Removing and Installing .
Cover
- Refer to Side Underbody Trim Panel, Removing and Installing .
Impact Guard
- Refer to Impact Guard, Removing and Installing .
Bolt
- Quantity: 3
- 20 Nm
Rear Underbody Trim Panel
- Refer to Rear Underbody Trim Panel, Removing and Installing .
Bolt
- Quantity: 9
- 2 Nm
Rear Motor Underbody Protection
- Refer to Motor Underbody Protection, Removing and Installing .
Bolt
- Quantity: 2
- 8 Nm
Clip
- Quantity: 3
Bolt
- Quantity: 4
- 20 Nm
Spring Nut
- Quantity: 4
Bolt
- Quantity: 4
- 2 Nm
Impact Guard for Motor Underbody Protection
- Refer to Impact Guard for Motor Underbody Protection, Removing and Installing .
Nut
- Quantity: 34
- Replace after removing
- 8 Nm +30°
Bolt
- Quantity: 39
- Replace after removing
- 8 Nm
Bolt
- Quantity: 4
- 2 Nm
Bolt
- Quantity: 10
- 2 Nm
Clip
- Quantity: 4
Bolt
- Quantity: 9
- 2 Nm
