Front Underbody Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

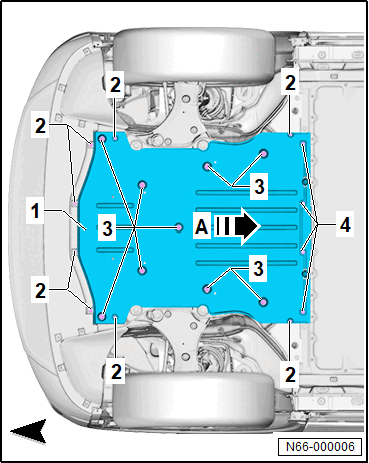

-- Remove the bolts -2- and -3-.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-- Unclip the clips -4-.
-- Remove the front underbody trim panel -1- in the -direction of the arrow A- from the bumper cover.
