Center Underbody Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

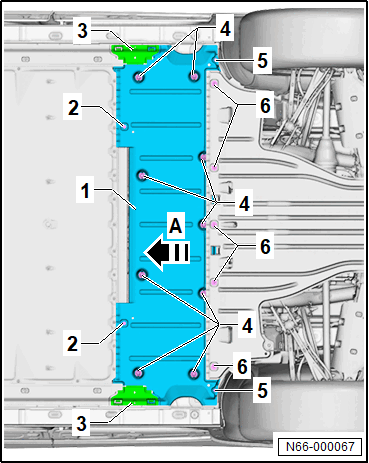

-- Unclip the covers -3-.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-- Remove the nuts -4-.
-- Remove the bolts -5- and -6-.
-- Unclip the expanding nuts -2-.
-- Remove the center underbody trim panel -1- in the -direction of the arrow A-.
