Overview - Trailer Hitch

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

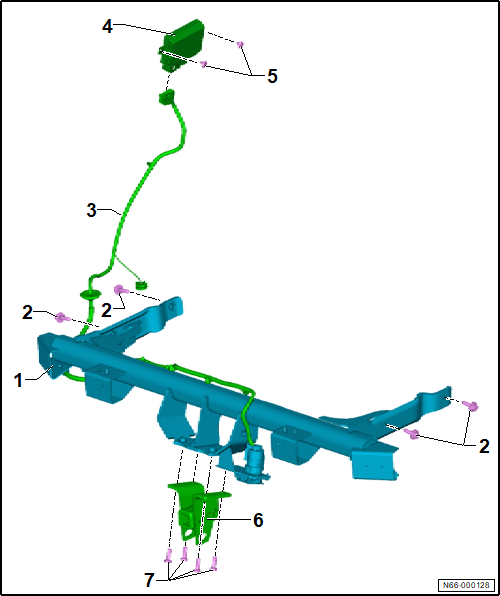

Fig 1: Exploded View Of Trailer Hitch Ball Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Trailer Hitch
- Refer to PIVOTING TRAILER HITCH VX15, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- Replace after removing
- 50 Nm + 180°
Wire
Towing Recognition Control Module -J345-
- Refer to Towing Recognition Control Module J345, Removing and Installing .
Bolt
- Quantity: 2
- 2.5 Nm
Trailer Ball Mount
- Refer to Bumper Cover, Removing and Installing .
Bolt
- Quantity: 4
- 60 Nm
