Towing Recognition Control Module J345, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

If the towing recognition control module is being replaced, the test plan to replace the control module must be performed:

-- Perform the "Replace towing recognition control module" function using the. Refer to DIAGNOSTIC ENTRIES .

Continuation

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

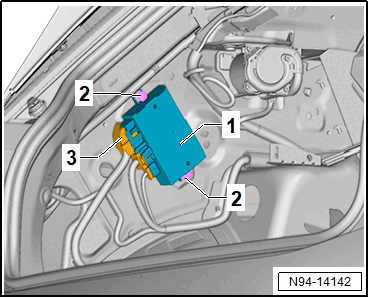

Towing control module with screws

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Towing control module with expanding rivet

-- Remove expanding rivet -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for all vehicles

-- Remove the towing recognition control module -1-.

-- Disconnect the connectors -3-.
