Pivoting Trailer Hitch VX15, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the bumper cover. Refer to Bumper Cover, Removing and Installing .

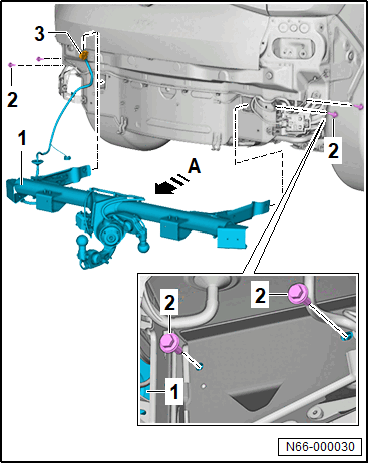

-- Disconnect the connector -3-.
-- Guide the wires out of the vehicle.
-- Remove the bolts -2-.
-- Remove the trailer hitch -1- parallel in the -direction of the arrow A-.
