Spoiler Trim, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Replace any fasteners that are damaged.

-- Connect the connector -3- for the High-Mounted Brake Lamp Bulb -M25- -4-.

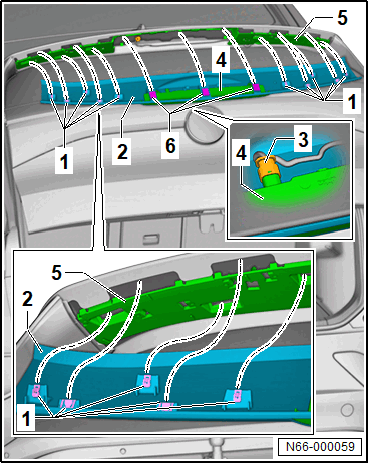

GWWN66-000059Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the spoiler trim -2- on the spoiler trim support -5- and align it.

-- Slide the clips -1- into the openings for the spoiler trim support -5-.

-- Push on the Velcro -6- in the area of the High-Mounted Brake Lamp Bulb -M25- -4-.

-- Position the spoiler trim -2- on the spoiler trim support -5- and press it on.
