Side Spoiler, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the adhesive residue and the adhesive surfaces. Refer to Installation Requirements for Components with Adhesive Tape .

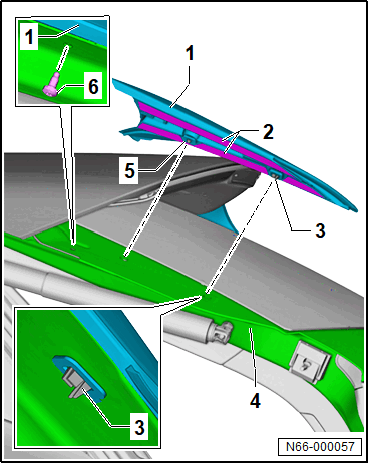

-- Position the side spoiler -1- with the centering pin -5- and hook -3- on the rear lid -4- and align.
-- Remove the protective film from the adhesive tape -2-.
-- Press the side spoiler -1- onto the rear lid -4-.
Pay attention that the hook -3- engages in the rear lid -4-.
-- Tighten the bolt -6-.
-- Press on the side spoiler -1- in the area of the adhesive tapes -2- using a force of 70 N to 80 N.
Requirement
- The minimum curing time must be complied to. Refer to Installation Requirements for Components with Adhesive Tape .
