Roof Trim Molding, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the C-pillar trim. Refer to C-Pillar Trim, Removing and Installing  .

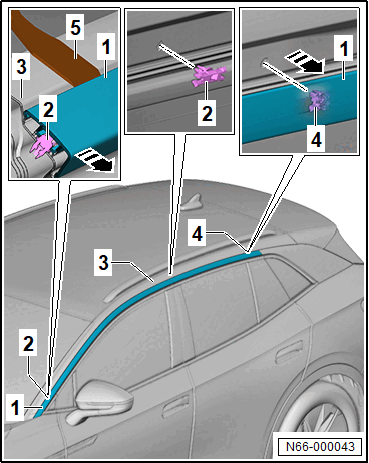

-- Remove the clip -4- with a commercially available plastic wedge -5- in the -direction of the arrow- from the roof pillar -3-.

GWWN66-000043Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry out the roof trim molding -1- with a commercially available plastic wedge -5- in the -direction of the arrow- from the rear forward from the clips -2-.
