Rear Name Badges, Removing And Installing.: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the adhesive residue and the adhesive surfaces. Refer to Installation Requirements for Components with Adhesive Tape .

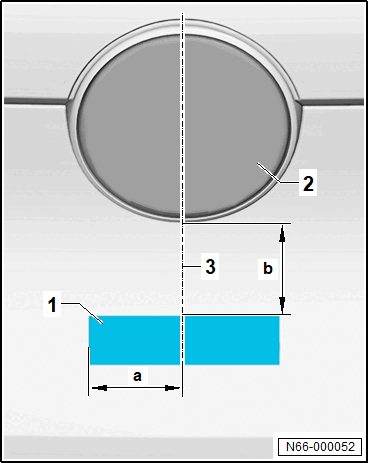

-- Position the name badge on the rear -1- at the same time pay attention to the dimensions.
- Rear emblem -2-
- Center line -3-
- Side dimension -a- = 53 ± 1 mm
- Height dimension -b- = 68 ± 1 mm
-- Press on the name badge.
-- Press on the rear name badge -1- with 40 N to 50 N.
Requirement
- The minimum curing time must be complied to. Refer to Installation Requirements for Components with Adhesive Tape .
