Name Badges And Emblems On Sides, Replacing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the adhesive residue and the adhesive surfaces. Refer to Installation Requirements for Components with Adhesive Tape .

Fender Name Badge

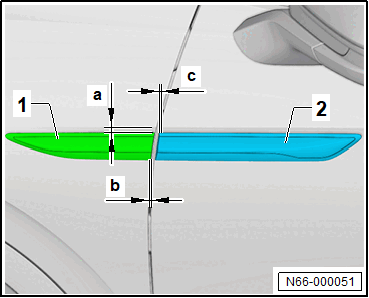

-- Position the name badge on the fender -1- at the same time pay attention to the dimensions.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Height dimension -a- = 11 mm
Side dimension -b- = 0 ± 1 mm

Front Door Name Badge

-- Position the name badge on the door -2- flush to the name badge on the fender -1- while paying attention to the dimension:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Side dimension -c- = 0 ± 1 mm

Continuation for all vehicles

-- Press on the name badge.

-- Roll on the name badge using the Roller: T40400 in the area of the adhesive tape with 40 N to 50 N.

Requirement

The minimum curing time must be complied to. Refer to Installation Requirements for Components with Adhesive Tape .
