Front Emblem, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to Bumper Cover, Removing and Installing .

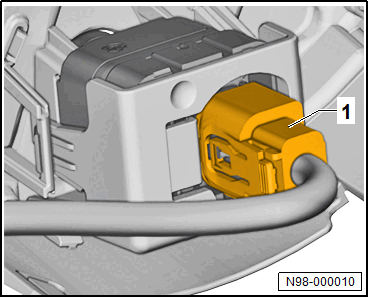

Vehicles with Front Peripheral Camera -R243- in the emblem

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for all vehicles

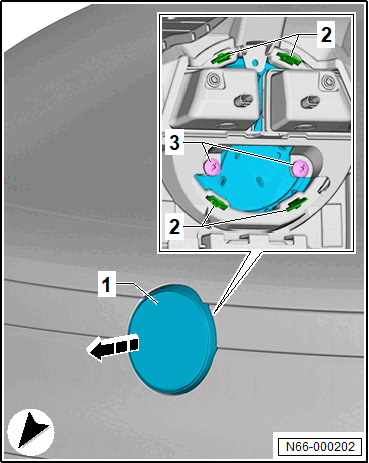

-- Remove the bolts -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the catches -2-.

-- Remove the front emblem -1- in the -direction of the arrow-.
