Overview - Wheel Covers

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

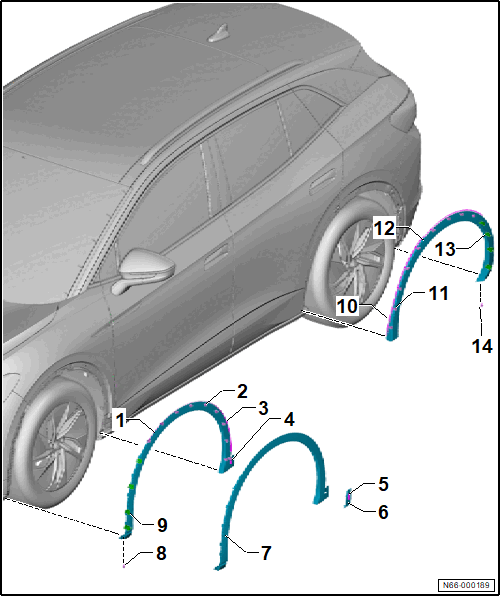

Fig 1: Exploded View Of Wheel Covers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Wheel Trim
- Depending on the equipment/version
- Replace after removing
- Refer to FRONT WHEEL COVER, REMOVING AND INSTALLING .
Clip
- Quantity: 10
Foam Strip
- Only replace together with the front wheel arch trim
Adhesive Tape
- Only replace together with the front wheel arch trim
Fender Cover
- Depending on the equipment/version
- Replace after removing
- Refer to FENDER COVER, REMOVING AND INSTALLING .
Adhesive Tape
- Only replace together with the fender cover
Front Wheel Trim
- Depending on the equipment/version
- Replace after removing
- Refer to FRONT WHEEL COVER, REMOVING AND INSTALLING .
Bolt
- 2 Nm
Catch
- Only replace together with the front wheel arch trim
- Quantity: 4
Foam Strip
- Only replace together with the rear wheel arch trim
Clip
- Quantity: 9
Rear wheel trim
- Replace after removing
- Refer to REAR WHEEL COVER, REMOVING AND INSTALLING .
Catch
- Only replace together with the rear wheel arch trim
- Quantity: 4
Bolt
- 2 Nm
