Overview - Drip Rail

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

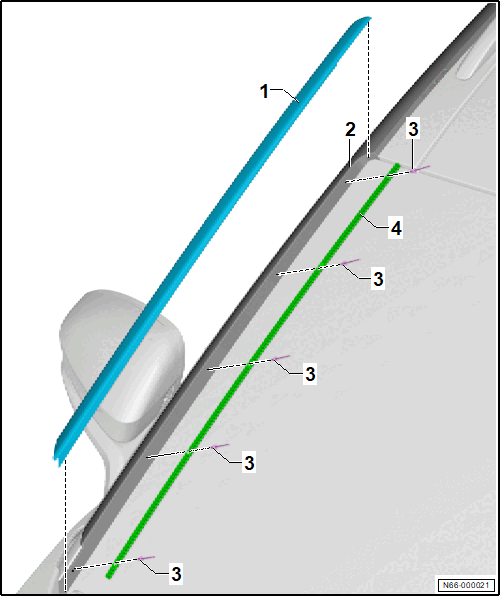

The overview shows the right side of the vehicle as an example

GWWN66-000021Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Drip Rail
  2. A-Pillar
  3. Pop Rivet
    • Quantity depending on the model
    • Quantity: 5 or 6
  4. Retaining Strip
