Front Wheel Cover, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Remove the adhesive residue and the adhesive surfaces. Refer to Installation Requirements for Components with Adhesive Tape .

-- Remove the protective film -5- using the pulling aids from the adhesive tape -6-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

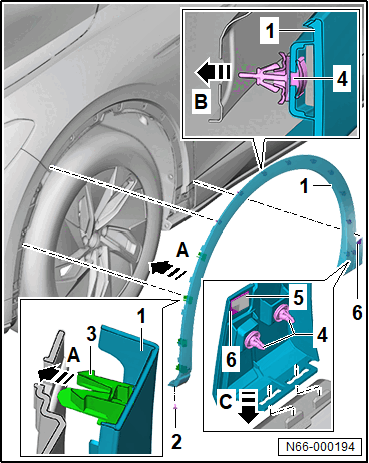

-- Guide in the front wheel arch trim -1- -arrow C-.

-- Engage the clips -4- from the front wheel arch trim -1- into the fender -arrow B-.

-- Engage the hooks -3- from the front wheel arch trim -1- into the bumper cover -arrow A-.

-- Press on the front wheel arch trim in -direction of the arrow A-.

-- Press on the front wheel arch trim using the Roller: T40400 in the area with the adhesive tape, using a force of 50 N to 70 N.

Requirement

The minimum curing time must be complied to. Refer to Installation Requirements for Components with Adhesive Tape .

-- Tighten the bolts from the front wheel arch trim to the bumper.
