C-Pillar Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

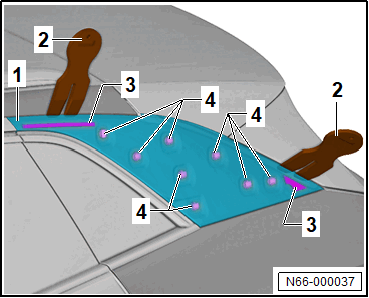

-- Heat up the C-pillar trim -1- in the area of the adhesive tape -3- using the Hot Air Blower: V. A. G 1416  . Refer to Installation Requirements for Components with Adhesive Tape .

GWWN66-000037Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the clips -4- using the Wedge Set: T10383  -2-.
